5 dBi LoRa Antenna 915Mhz Outdoor Omni-Directional Antenna with KMR240 Cable and Adapter N211
5 dBi LoRa Antenna 915Mhz Outdoor Omni-Directional Antenna with KMR240 Cable and Adapter N211

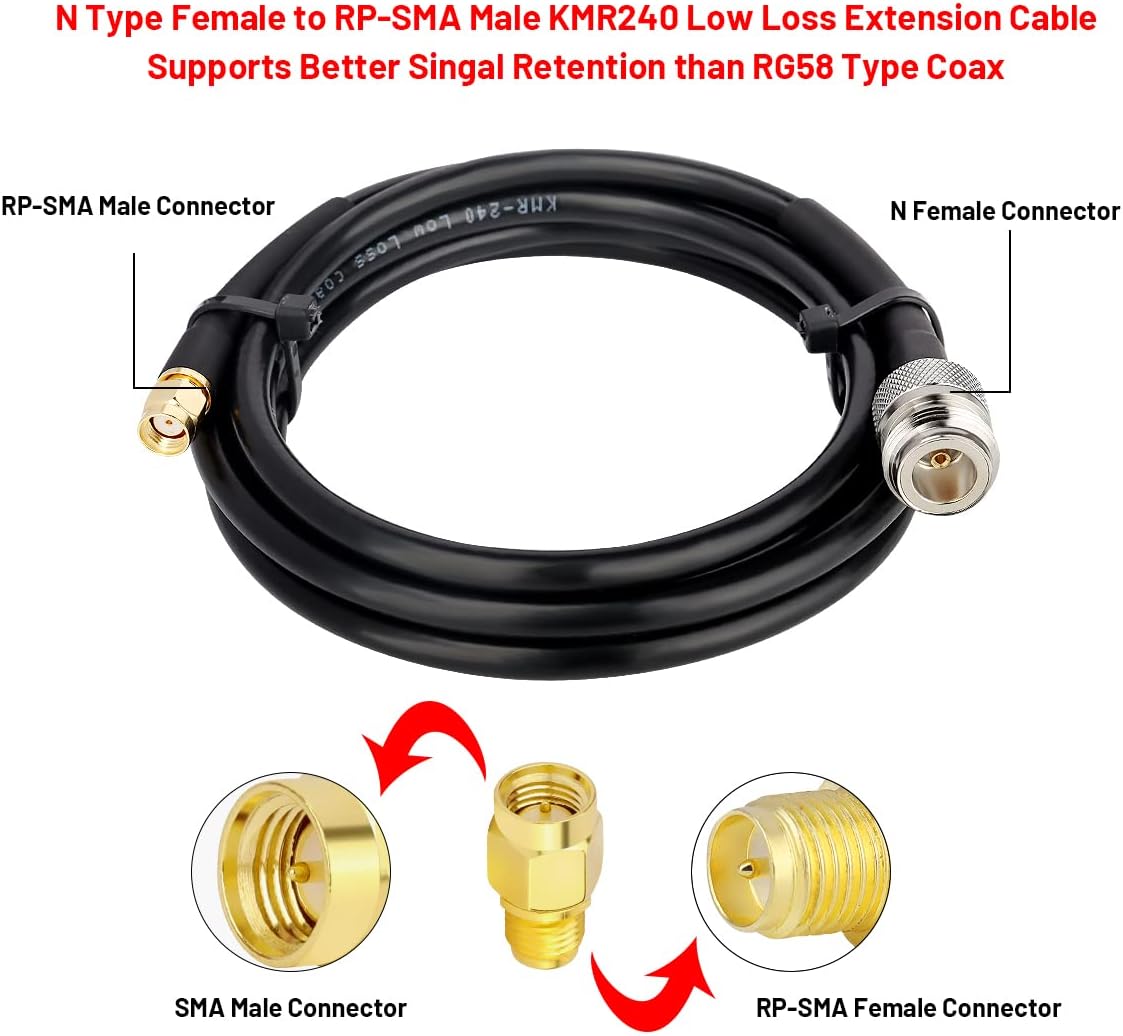

With Low Loss Cable and adapter : 6ft KMR240 N Female to RP-SMA Male Low Loss cable. KMR240 cable means a much larger center conductor and supports better signal retention than RG58 Type coax and KMR200 Cable; Adapter RP-SMA Female to SMA Male
Durable: This 915Mhz antenna is made of high-quality glass fiber reinforced plastic material, strong and durable, anti-corrosion.Quality build and durable fiberglass finish make it more suitable for all-weather operation.
Works with Most of LoRa IoT Application: Compatible with all helium miner hotspot: Nebra HNT Indoor/Outdoor Hotspot Miner, HNT rewards, RAK Hotspot Miner v2, BOBCAT Miner 300, SyncroBit Gateway, SenseCAP M1, Sensecap MX, Kerlink helium miner lora gateway, Helium Miner crypto, Helium HNT Miner, lora camera, designed for LoRa Helium mining, Low power radio: Sigfox, LPWA, LoRa, mesh networks, IoT Application.

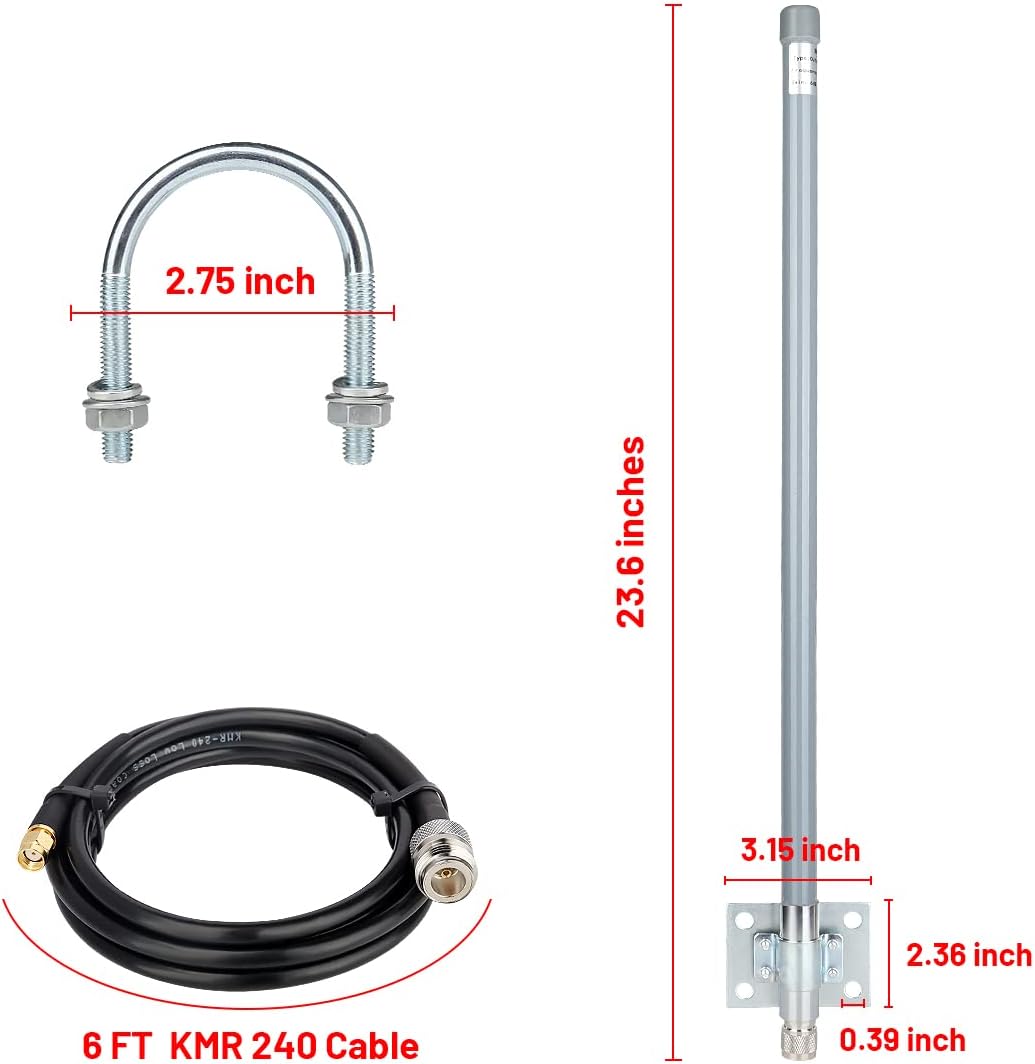

Packing List: 1 x 23.6inch lorawan antenna(N male Connector); 1 x 6ft KMR240 extention cable(N Female to RP-SMA Male); 1 x Adapter (RP-SMA Female to SMA Male); 2 x U-bolt clamps (Pole is not included)

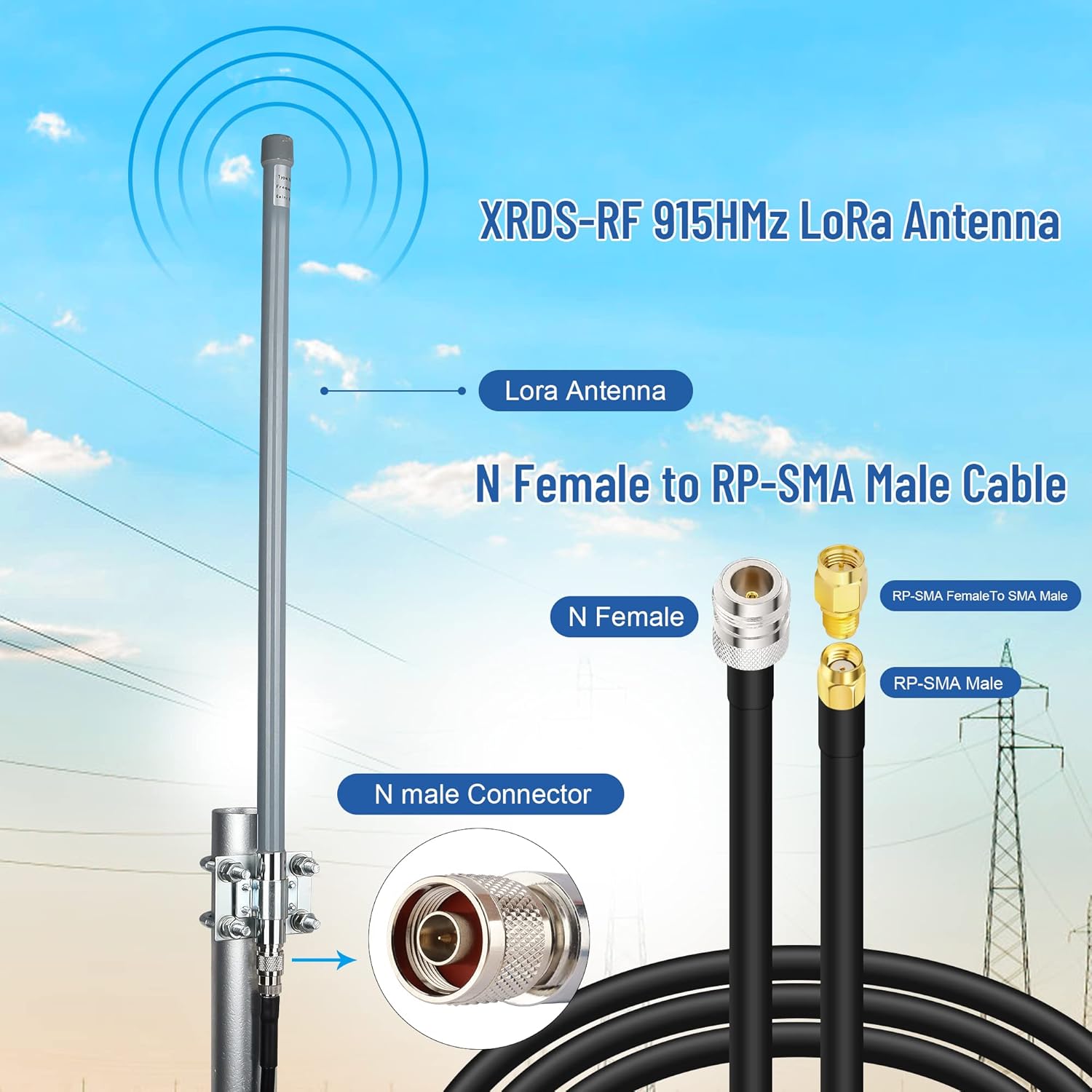

XRDS-RF 5 dBi LoRa Antenna 915Mhz Outdoor Omni-Directional Antenna for Helium Network Helium Miner Hotspot with KMR240 N Female to RP-SMA Male Extension Cable and SMA male to RP-SMA female Adapter

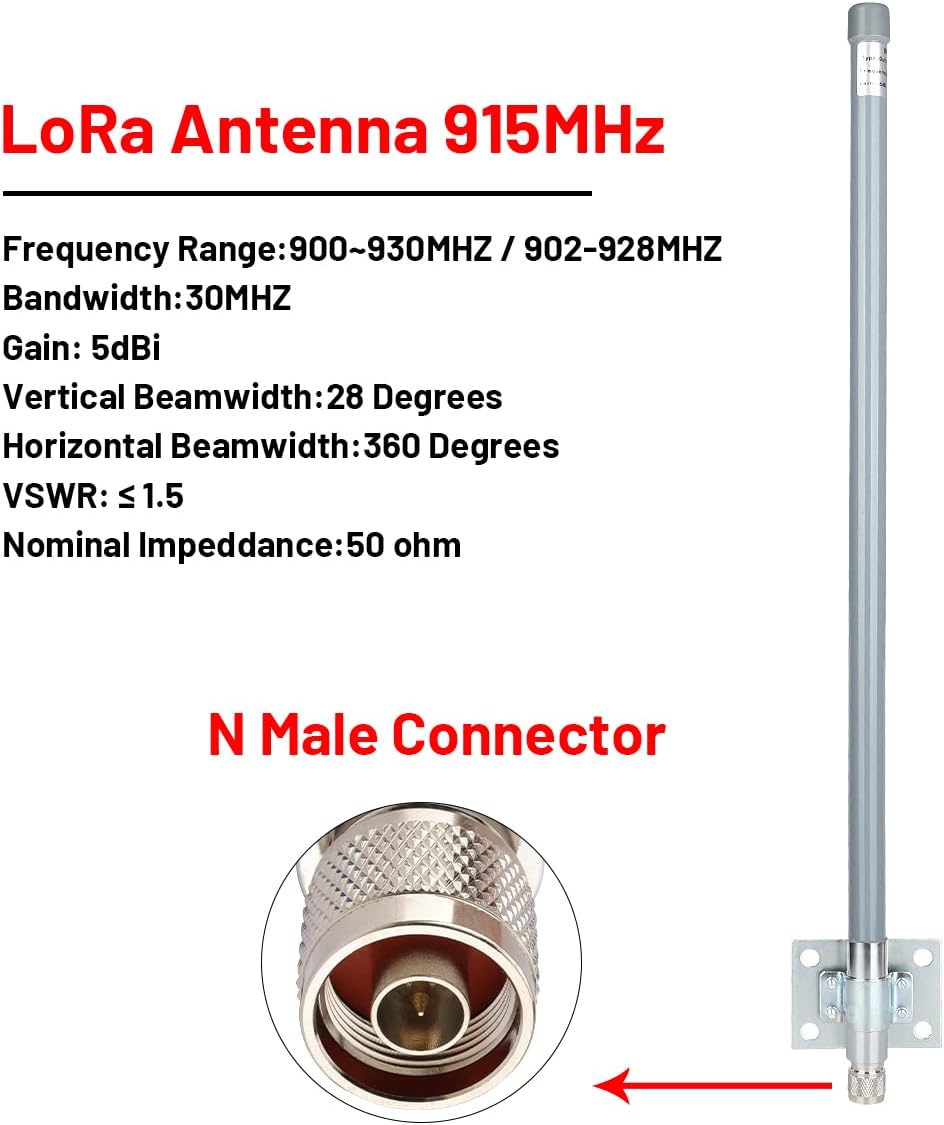

Specification：
Frequency: 900-930MHz
Gain: 5dbi
Antenna length: 23.6inch/60cm
Cable length: 6ft KMR240 extension cable( supports better signal retention than RG58 Type coax and KMR200 cable)
KMR240 Cable assemblies can significantly boost the RF signal range and coverage for Helium Hotspot devices.
Antenna Connector: N-type male
Adapter: SMA male to RP-SMA female
VSWR<1.5
Polarization: vertical polarization
Impedance: 50 Ohm

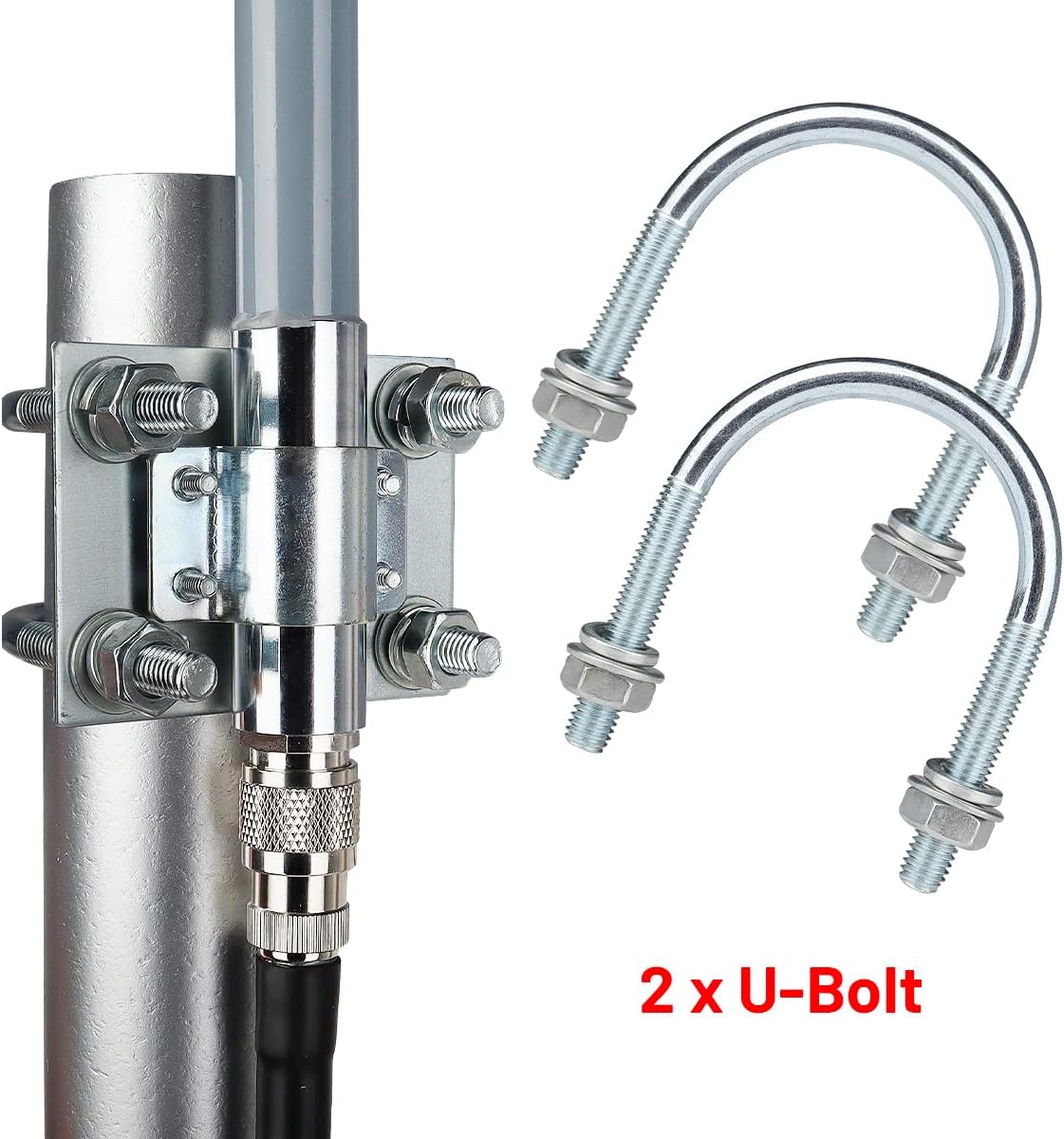

Installation method: U-bolt pole mount, can be used to secure an antenna mast of up to 1.97' (50mm) diameter (Pole is not included)
Please Note:
Signal transmission is affected by many factors, including distance, the density of high-rise buildings, view openness; The signal may be absorbed, reflected or interfered. Please try more installation positions to achieve the maximum transmission efficiency.

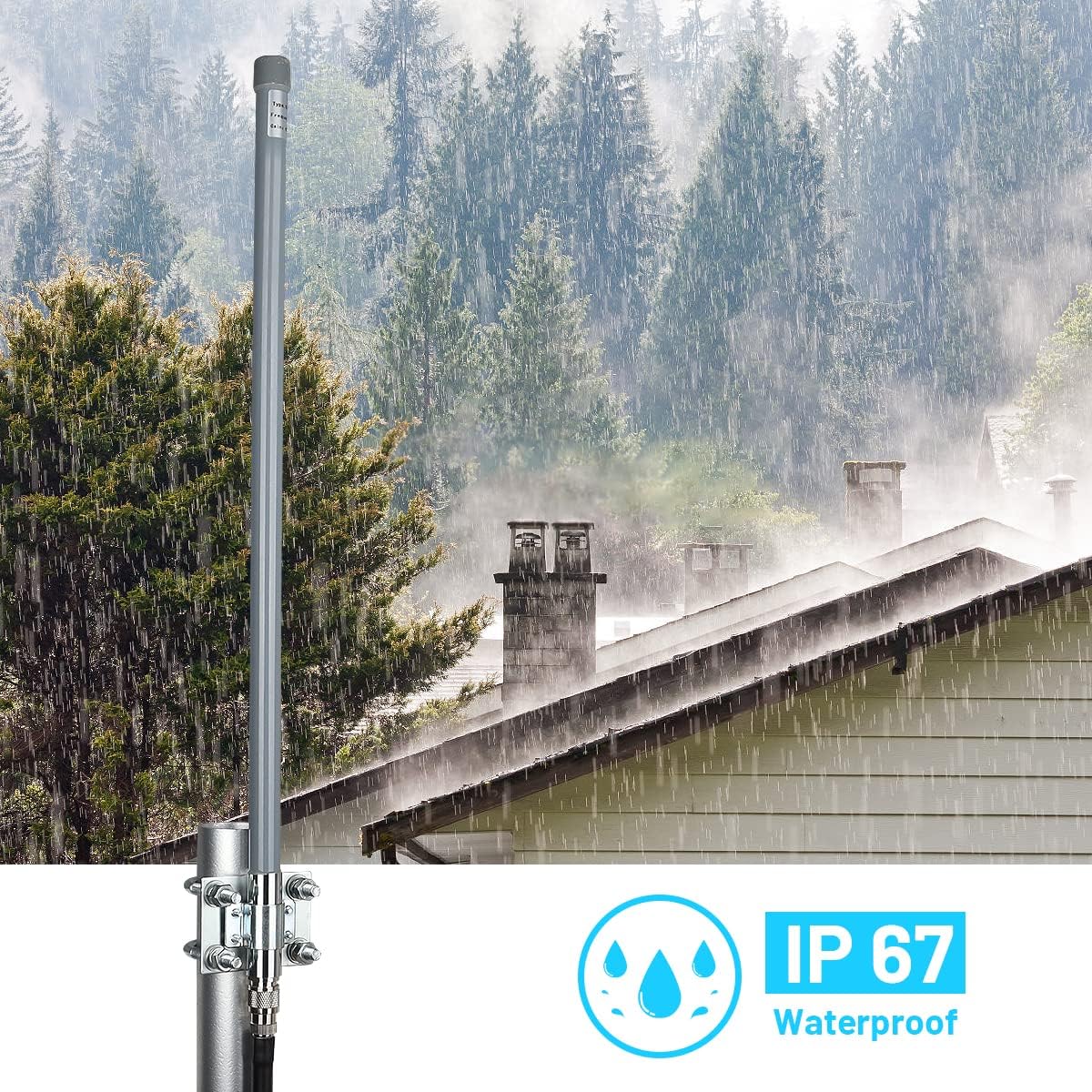

The antenna is recommended to installed in a relatively open and high position, such as the roof, near the window or out of the window. If the antenna is placed indoors, the signal transmission distance will be reduced.
Long cable length can seriously effect antenna performance. Low loss KMR240 & KMR400 Cable is recommended if you need a longer Cable.

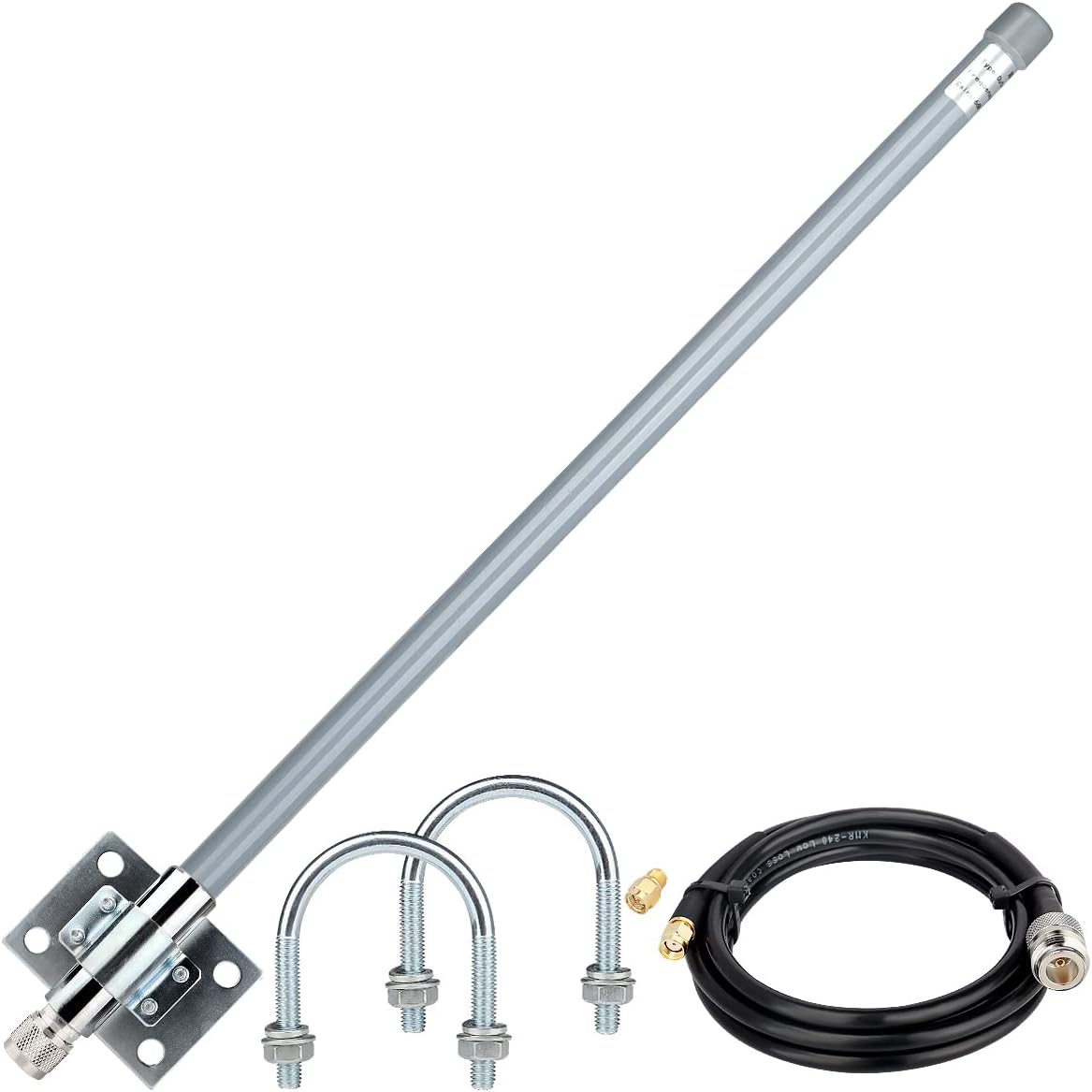

package List:
1 x 23.6inch lorawan antenna(N male Connector)
1 x 6ft KMR240 Extension Cable(N Female to RP-SMA Male)
1 x Adapter (RP-SMA Female to SMA Male)
2 x U-bolt clamps (Pole is not included)
